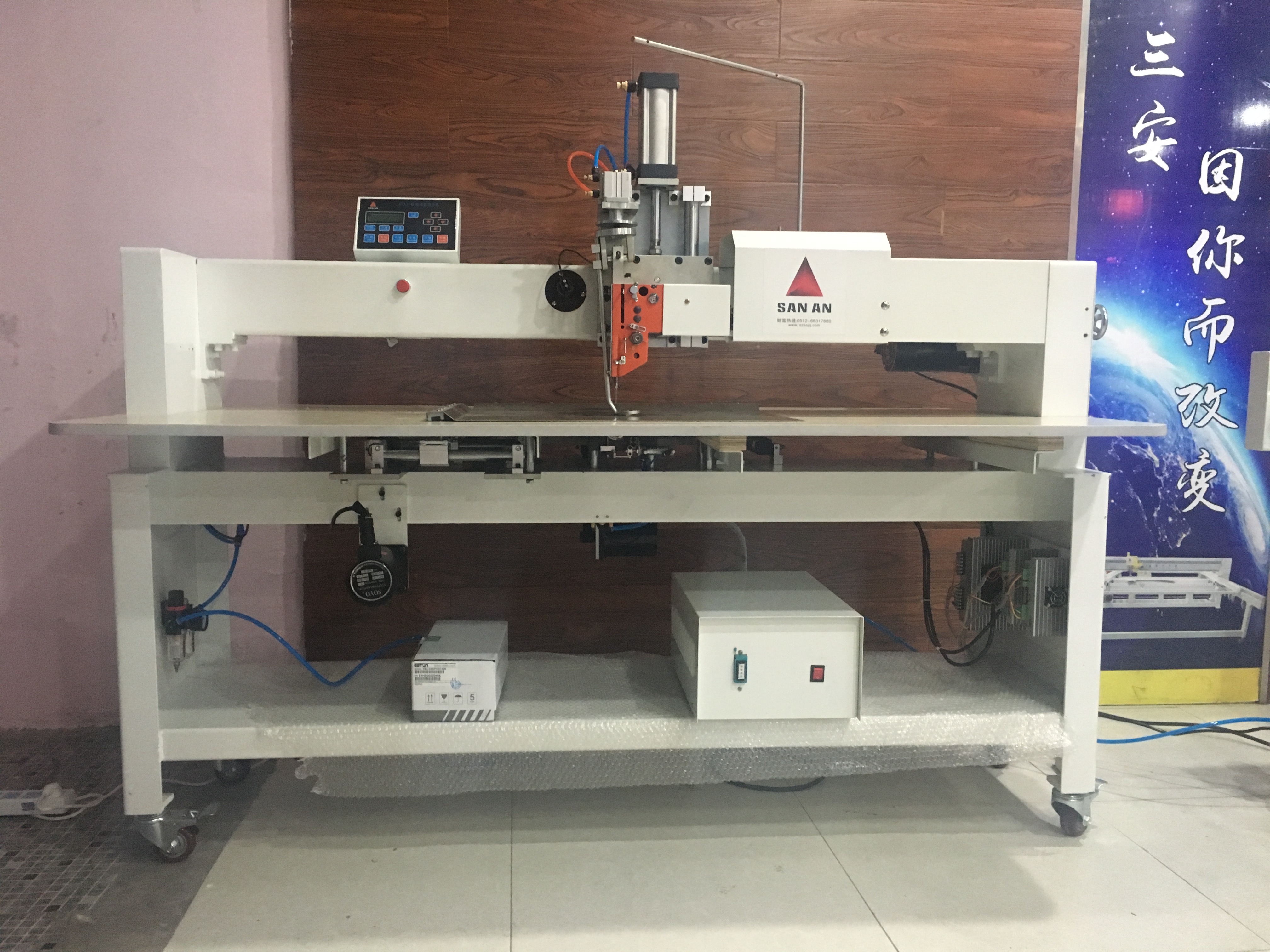

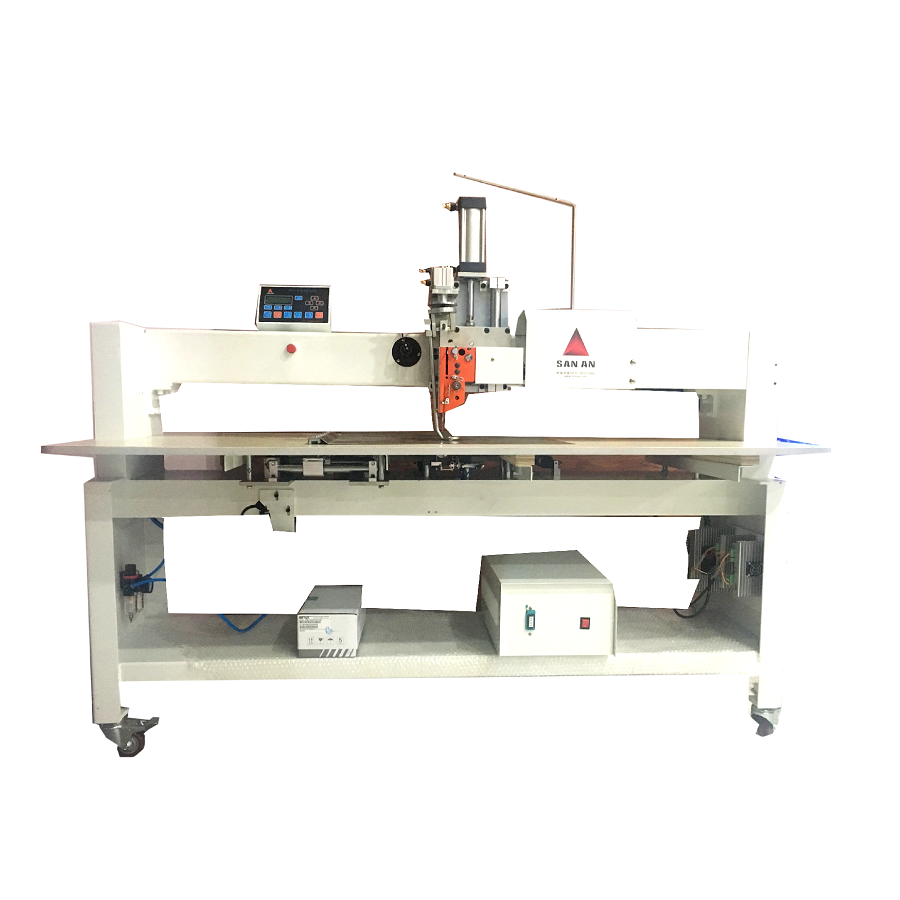

FDJ-BK（SERIES）
FDJ-BK Users: Suitable for all kinds of cushions,cushions,mattress sewing srereotypes:
FDJ-BK Features:
The special presser makes it possess the ability of high quilting thickness;
Machine head and presser can rise up and down automatically,and it is convenient to put thick pad;
Almost no failure,parts rarely need to be replaced;
Simple operation,5 minutes to learn to operate;
Built-in 34 flower-shaped.
Specifications:
| Sewing Thick | 100mm Max | Needle | SINGER MR5. DPX5 14-23# |
| Size | Width 1000 (mm) Max | Stitch Atea | φ20mm Max |
| Head Left | 0-100(mm) | Dimensions | 1.8m (L ) x0.9m（W）x1.3m(H ) |
| Speed | 500SPM | Power | 220VAC+5%, 50H2,0.5 KW |
| Stitch Step | 1-3(mm) | Weight | 400Kg |
